The LITHTECH 51.2V 200Ah Wall Mount Residential Energy Storage Battery Pro is an advanced, high-capacity LiFePO₄ battery system designed for residential solar energy storage. This compact, wall-mounted solution provides 10.24kWh of energy with fast charging capabilities, allowing homeowners to store energy efficiently and access it quickly when needed. Perfect for off-grid homes, solar installations, and backup power, this system offers reliable performance and easy installation with a sleek, space-saving design.
Why Choose the LITHTECH 51.2V 200Ah Battery?
- Wall Mount Design: Quick installation with a hidden wiring system, making it perfect for modern homes where space is a premium.
- High Energy Capacity: With 10.24kWh of energy, it ensures your home stays powered throughout the night and during cloudy weather.
- Fast Charging: Capable of being fully charged in just 1 hour, minimizing downtime and maximizing energy availability.
- Enhanced Safety Features: Dual protection mechanisms ensure overcharge, over-discharge, and over-voltage protection for maximum safety.
- Remote Monitoring & Updates: Stay in control with remote detection capabilities and real-time software updates for easy system management.
- Efficient Energy Management: Optimized charging and discharging with an active balancing system for long-lasting and efficient performance.

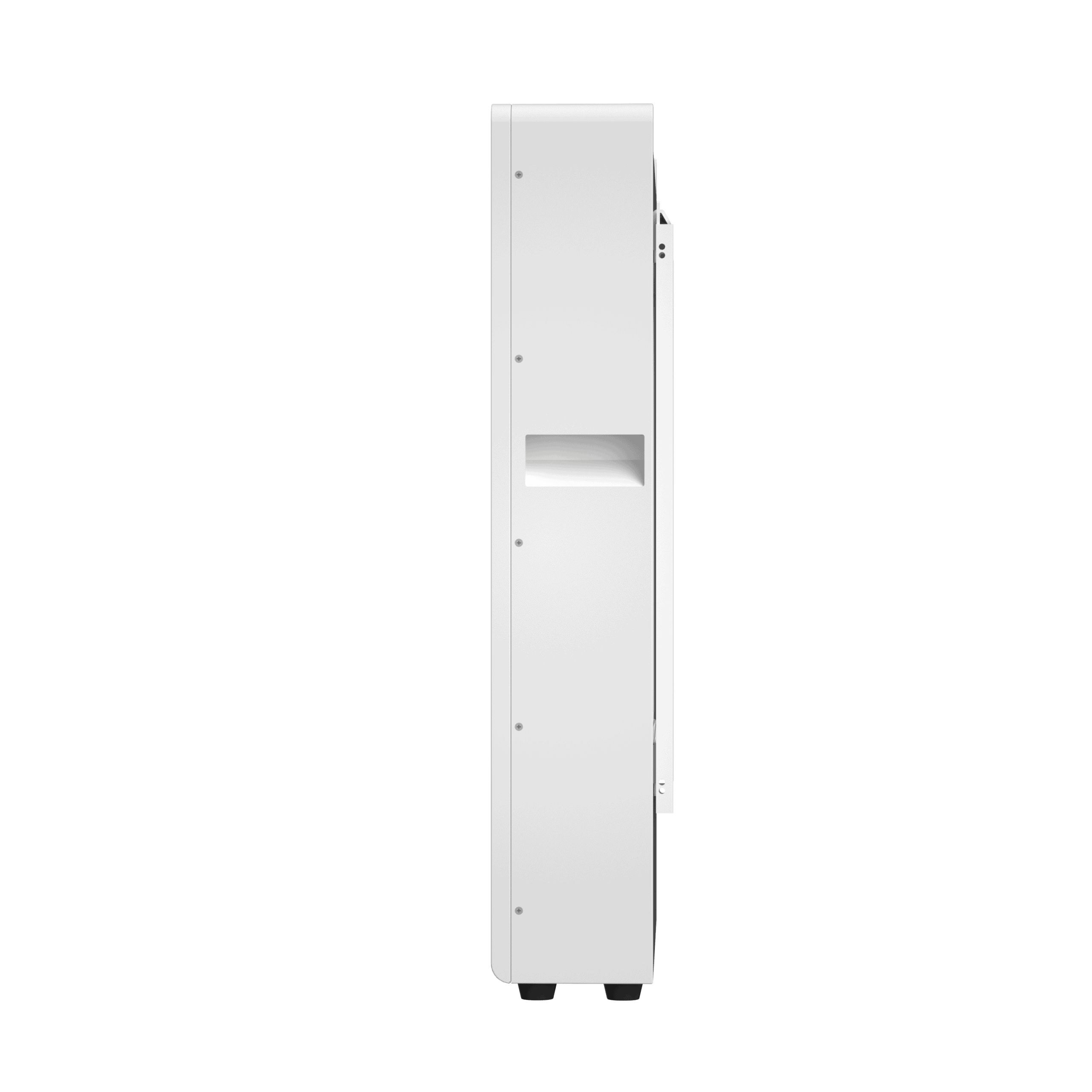

- Slim, Compact Design: With a 160mm profile, this battery can be installed in tight spaces without sacrificing power or performance.
Key Features:
- High Efficiency: Optimized for maximum energy utilization, ensuring you get the most from your solar power system.
- Fast Charging: Fully charged in just 1 hour, reducing waiting times and maximizing your home’s energy availability.
- Smart Battery Management: Active cell balancing ensures efficient charging and discharging, while the system maintains a self-discharge rate of less than 3% per month.
- Dual Protection: Overcharge, over-discharge, and over-voltage protection for safe operation.
- 10-Year Warranty: Reliable and long-lasting performance backed by a 10-year warranty.
- Compact and Slim Design: At only 160mm thick, this battery system fits seamlessly into smaller spaces without compromising on power.
- Remote Monitoring: Real-time tracking and remote updates through integrated software, allowing for full control of your energy system.
- Temperature Protection: Supports both high and low-temperature operation, ideal for various climates.
Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 200Ah
- Energy: 10.24kWh
- Dimensions: 482 x 537 x 223.5 mm
- Weight: 82kg
- Charge/Discharge Current: 100A
- Rated Power: 5kW
- Max Discharge Current: 100A
- Cycle Life: 6000 times @ 25℃ 80% DoD
- Warranty: 10 Years
- Protocols: CAN | RS232 | RS485
- Certifications: UL1973 | CE | UN38.3 | MSDS
- What’s in the Box:
- 1 x LITHTECH 51.2V 200Ah LiFePO₄ Battery Pack (Wall Mount)
- 1 x User Manual (Installation & Setup Guide)
- 1 x Warranty Registration Card
Why LITHTECH?
- Safe & Reliable: Built with multiple layers of protection for safe operation under all conditions.
- Eco-Friendly: Using LiFePO₄ (Lithium Iron Phosphate) technology ensures a long lifespan and zero toxic emissions, making it environmentally friendly.
- Global Use: Trusted in homes and commercial systems worldwide, LITHTECH is known for its reliable performance in diverse environments.
Perfect For:
- Residential Solar Power Systems
- Backup Power Solutions
- Off-Grid Homes and Cabins
- Energy Storage for Homes
- Energy-Efficient Homes
- Solar Panel Integration
DOWNLOAD SPECIFICAFIONS BELOW
TR6000WX-PRO-Wall-Mounted-Energy-Storage
Download Wall Mount Residential ESS Solution
Wall-Mount-Residential-ESS-Lithtech-2025
